TPSMC22A-VR

Wickmann / Littelfuse
  • Lifecycle status Active
  • RoHS RoHS Compliant
  • DescriptionTVS DIODE 22V UNI 35.5VC D0214AB
  • CategoryTVS - Diodes
  • ECAD Model
  • Share
In Stock: 133

Can ship immediately

Pricing:
  • 1$0.32886
  • 3,000$0.32886

Quote It

Technical Details

  • Series:Automotive, AEC-Q101, TPSMC-VR
  • Package:Tape & Reel (TR)
  • Part Status:Active
  • Type:Zener
  • Unidirectional Channels:1
  • Bidirectional Channels:-
  • Voltage - Reverse Standoff (Typ):22V
  • Voltage - Breakdown (Min):24.4V
  • Voltage - Clamping (Max) @ Ipp:35.5V



  • Current - Peak Pulse (10/1000µs):42.3A
  • Power - Peak Pulse:1500W (1.5kW)
  • Power Line Protection:No
  • Applications:General Purpose
  • Capacitance @ Frequency:-
  • Operating Temperature:-65°C ~ 150°C (TJ)
  • Mounting Type:Surface Mount
  • Package / Case:DO-214AB, SMC
  • Supplier Device Package:DO-214AB (SMCJ)

Related Products


TPSMC22CA-VR

TVS DIODE 22V BI 35.5VC D0-214AB

  • 1: $0.32886
  • 3000: $0.32886

TPSMC24A-VR

TVS DIODE 24V UNI 38.9VC D0214AB

  • 1: $0.32886
  • 3000: $0.32886

TPSMC24CA-VR

TVS DIODE 24V BI 38.9VC D0-214AB

  • 1: $0.32886
  • 3000: $0.32886

TPSMC26CA-VR

TVS DIODE 26V BI 42.1VC D0-214AB

  • 1: $0.32886
  • 3000: $0.32886

TPSMC28A-VR

TVS DIODE 28V UNI 45.4VC D0214AB

  • 1: $0.32886
  • 3000: $0.32886

TPSMC28CA-VR

TVS DIODE 28V BI 45.4VC D0-214AB

  • 1: $0.32886
  • 3000: $0.32886

TPSMC30A-VR

TVS DIODE 30V UNI 48.4VC D0214AB

  • 1: $0.32886
  • 3000: $0.32886

TPSMC30CA-VR

TVS DIODE 30V BI 48.4VC D0-214AB

  • 1: $0.32886
  • 3000: $0.32886

TPSMC33CA-VR

TVS DIODE 33V BI 53.3VC D0-214AB

  • 1: $0.32886
  • 3000: $0.32886

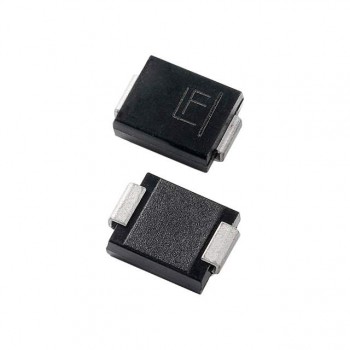

TPSMC36A-VR
