TPSMD70A
Wickmann / Littelfuse
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionTVS DIODE 70V 113V DO214AB
- CategoryTVS - Diodes
- Datasheet TPSMD70A Datasheet
-
ECAD Model
- Share
In Stock: 192
Can ship immediately
Pricing:
- 1$0.44453
- 3,000$0.44453
Quote It
Technical Details
- Series:Automotive, AEC-Q101, TPSMD
- Package:Tape & Reel (TR)
- Part Status:Active
- Type:Zener
- Unidirectional Channels:1
- Bidirectional Channels:-
- Voltage - Reverse Standoff (Typ):70V
- Voltage - Breakdown (Min):77.8V
- Voltage - Clamping (Max) @ Ipp:113V
- Current - Peak Pulse (10/1000µs):26.5A
- Power - Peak Pulse:3000W (3kW)
- Power Line Protection:No
- Applications:Automotive
- Capacitance @ Frequency:-
- Operating Temperature:-65°C ~ 150°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:DO-214AB, SMC
- Supplier Device Package:DO-214AB (SMCJ)
Related Products

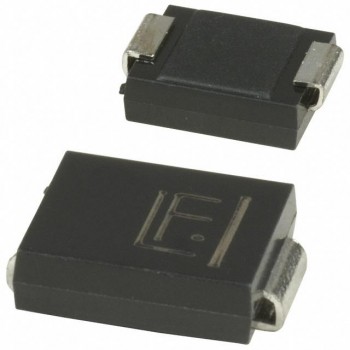

TVS DIODE 100V 162V DO214AB
- 1: $0.63140
- 500: $0.63140

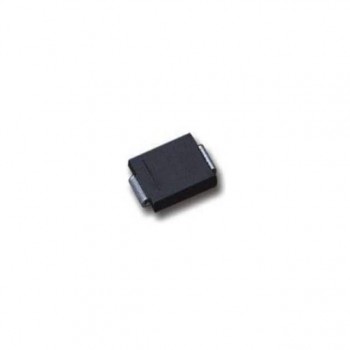

TVS DIODE 120V 193V DO214AB
