SMDJ78CA-T7

Wickmann / Littelfuse
  • Lifecycle status Active
  • RoHS RoHS Compliant
  • DescriptionTVS DIODE 78V 126V DO214AB
  • CategoryTVS - Diodes
  • ECAD Model
  • Share
In Stock: 170

Can ship immediately

Pricing:
  • 1$1.0102
  • 500$1.0102

Quote It

Technical Details

  • Series:SMDJ
  • Package:Tape & Reel (TR)
  • Part Status:Active
  • Type:Zener
  • Unidirectional Channels:-
  • Bidirectional Channels:1
  • Voltage - Reverse Standoff (Typ):78V
  • Voltage - Breakdown (Min):86.7V
  • Voltage - Clamping (Max) @ Ipp:126V



  • Current - Peak Pulse (10/1000µs):23.8A
  • Power - Peak Pulse:3000W (3kW)
  • Power Line Protection:No
  • Applications:General Purpose
  • Capacitance @ Frequency:-
  • Operating Temperature:-65°C ~ 150°C (TJ)
  • Mounting Type:Surface Mount
  • Package / Case:DO-214AB, SMC
  • Supplier Device Package:DO-214AB (SMCJ)

Related Products


SMDJ70CA-T7

TVS DIODE 70V 113V DO214AB

  • 1: $1.01020
  • 500: $1.01020

SMDJ75CA-T7

TVS DIODE 75V 121V DO214AB

  • 1: $1.01020
  • 500: $1.01020

SMDJ45CA-T7

TVS DIODE 45V 72.7V DO214AB

  • 1: $1.01020
  • 500: $1.01020

SMDJ48CA-T7

TVS DIODE 48V 77.4V DO214AB

  • 1: $1.01020
  • 500: $1.01020

SMDJ100CA-T7

TVS DIODE 100V 162V DO214AB

  • 1: $1.01020
  • 500: $1.01020

5.0SMDJ12A-T7

TVS DIODE 12V 19.9V DO214AB

5.0SMDJ12A-T7 Datasheet
  • 1: $1.06766
  • 500: $1.06766

5.0SMDJ13A-T7

TVS DIODE 13V 21.5V DO214AB

5.0SMDJ13A-T7 Datasheet
  • 1: $1.06766
  • 500: $1.06766

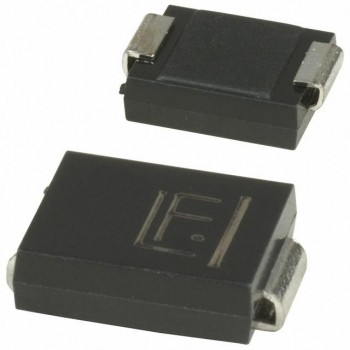

5.0SMDJ18A-T7
