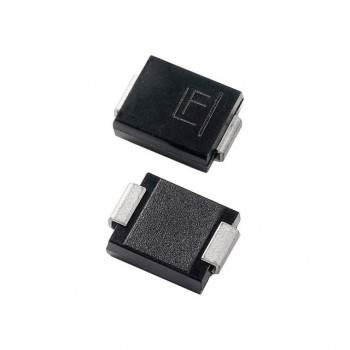

SMCJ13A-HR
Wickmann / Littelfuse
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionTVS DIODE 13V 21.5V DO214AB
- CategoryTVS - Diodes
- Datasheet SMCJ13A-HR Datasheet
-
ECAD Model
- Share
In Stock: 105
Can ship immediately
Pricing:
- 1$13.1544
- 500$13.1544
Quote It
Technical Details
- Series:SMCJ-HR
- Package:Tape & Reel (TR)
- Part Status:Active
- Type:Zener
- Unidirectional Channels:1
- Bidirectional Channels:-
- Voltage - Reverse Standoff (Typ):13V
- Voltage - Breakdown (Min):14.4V
- Voltage - Clamping (Max) @ Ipp:21.5V
- Current - Peak Pulse (10/1000µs):69.8A
- Power - Peak Pulse:1500W (1.5kW)
- Power Line Protection:No
- Applications:General Purpose
- Capacitance @ Frequency:-
- Operating Temperature:-65°C ~ 150°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:DO-214AB, SMC
- Supplier Device Package:DO-214AB (SMCJ)
