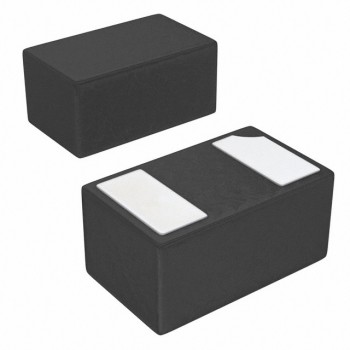

ESDA15P60-1U1M
STMicroelectronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionTVS DIODE 13.2V 22.7V 1610
- CategoryTVS - Diodes
- Datasheet ESDA15P60-1U1M Datasheet
-
ECAD Model
- Share
In Stock: 126
Can ship immediately
Pricing:
- 1$0.1386
- 8,000$0.1386
- 16,000$0.13059
- 24,000$0.12125
Quote It
Technical Details
- Series:ESDA
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Zener
- Unidirectional Channels:1
- Bidirectional Channels:-
- Voltage - Reverse Standoff (Typ):13.2V (Max)
- Voltage - Breakdown (Min):13.6V
- Voltage - Clamping (Max) @ Ipp:22.7V
- Current - Peak Pulse (10/1000µs):57A (8/20µs)
- Power - Peak Pulse:1200W (1.2kW)
- Power Line Protection:No
- Applications:General Purpose
- Capacitance @ Frequency:-
- Operating Temperature:-55°C ~ 150°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:2-UDFN
- Supplier Device Package:1610
