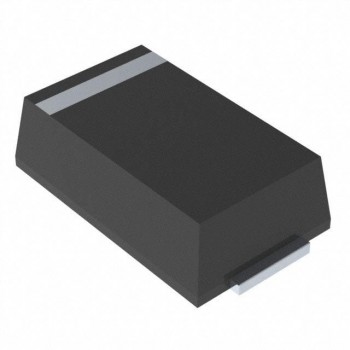

P6SMB56A-M3/5B
Vishay General Semiconductor – Diodes Division
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionTVS DIODE 47.8V 77V DO214AA
- CategoryTVS - Diodes
- Datasheet P6SMB56A-M3/5B Datasheet
-
ECAD Model
- Share
In Stock: 158
Can ship immediately
Pricing:
- 1$0.169
- 9,600$0.16752
Quote It
Technical Details
- Series:P6SMB, TransZorb®
- Package:Tape & Box (TB)
- Part Status:Active
- Type:Zener
- Unidirectional Channels:1
- Bidirectional Channels:-
- Voltage - Reverse Standoff (Typ):47.8V
- Voltage - Breakdown (Min):53.2V
- Voltage - Clamping (Max) @ Ipp:77V
- Current - Peak Pulse (10/1000µs):7.8A
- Power - Peak Pulse:600W
- Power Line Protection:No
- Applications:General Purpose
- Capacitance @ Frequency:-
- Operating Temperature:-65°C ~ 150°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:DO-214AA, SMB
- Supplier Device Package:DO-214AA (SMBJ)
