• Lifecycle status Active
  • RoHS RoHS Compliant
  • DescriptionTVS DIODE 60V 96.8V DO204AC
  • CategoryTVS - Diodes
  • ECAD Model
  • Share
In Stock: 136

Can ship immediately

Pricing:
  • 1$0.15379
  • 3,500$0.15379

Quote It

Technical Details

  • Series:Automotive, AEC-Q101, SA
  • Package:Tape & Reel (TR)
  • Part Status:Active
  • Type:Zener
  • Unidirectional Channels:1
  • Bidirectional Channels:-
  • Voltage - Reverse Standoff (Typ):60V
  • Voltage - Breakdown (Min):66.7V
  • Voltage - Clamping (Max) @ Ipp:96.8V



  • Current - Peak Pulse (10/1000µs):5.4A
  • Power - Peak Pulse:500W
  • Power Line Protection:No
  • Applications:Automotive
  • Capacitance @ Frequency:-
  • Operating Temperature:-55°C ~ 175°C (TJ)
  • Mounting Type:Through Hole
  • Package / Case:DO-204AC, DO-15, Axial
  • Supplier Device Package:DO-204AC (DO-15)

Related Products


SA64AHR0G

TVS DIODE 64V 103V DO204AC

SA64AHR0G Datasheet
  • 1: $0.15379
  • 3500: $0.15379

SA70AHR0G

TVS DIODE 70V 113V DO204AC

SA70AHR0G Datasheet
  • 1: $0.15379
  • 3500: $0.15379

SA75AHR0G

TVS DIODE 75V 121V DO204AC

  • 1: $0.15379
  • 3500: $0.15379

SA78AHR0G

TVS DIODE 78V 126V DO204AC

SA78AHR0G Datasheet
  • 1: $0.15379
  • 3500: $0.15379

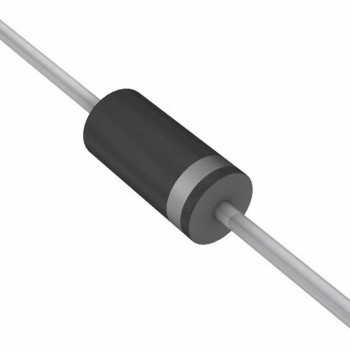

SA85AHR0G
