SMBJ75A-M3/5B
Vishay General Semiconductor – Diodes Division
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionTVS DIODE 75V 121V DO214AA
- CategoryTVS - Diodes
-
ECAD Model
- Share
In Stock: 176
Can ship immediately
Pricing:
- 1$0.17535
Quote It
Technical Details
- Series:TransZorb®
- Package:Tape & Reel (TR)
- Part Status:Active
- Type:Zener
- Unidirectional Channels:1
- Bidirectional Channels:-
- Voltage - Reverse Standoff (Typ):75V
- Voltage - Breakdown (Min):83.3V
- Voltage - Clamping (Max) @ Ipp:121V
- Current - Peak Pulse (10/1000µs):5A
- Power - Peak Pulse:600W
- Power Line Protection:No
- Applications:General Purpose
- Capacitance @ Frequency:-
- Operating Temperature:-55°C ~ 150°C (TJ)
- Mounting Type:Surface Mount

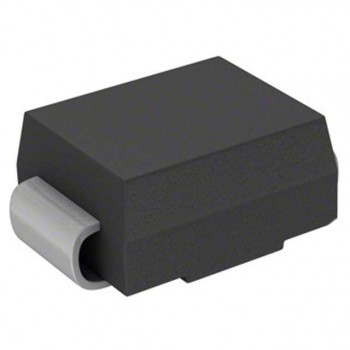

- Package / Case:DO-214AA, SMB
- Supplier Device Package:DO-214AA (SMBJ)
