In Stock: 111

Can ship immediately

Pricing:
  • 1$0.16299
  • 7,500$0.15358

Quote It

Technical Details

  • Series:SA
  • Package:Tape & Box (TB)
  • Part Status:Active
  • Type:Zener
  • Unidirectional Channels:1
  • Bidirectional Channels:-
  • Voltage - Reverse Standoff (Typ):6.5V
  • Voltage - Breakdown (Min):7.22V
  • Voltage - Clamping (Max) @ Ipp:11.2V



  • Current - Peak Pulse (10/1000µs):46A
  • Power - Peak Pulse:500W
  • Power Line Protection:No
  • Applications:General Purpose
  • Capacitance @ Frequency:-
  • Operating Temperature:-55°C ~ 175°C (TJ)
  • Mounting Type:Through Hole
  • Package / Case:DO-204AC, DO-15, Axial
  • Supplier Device Package:DO-204AC (DO-15)

Related Products


SA7.0A A0G

TVS DIODE 7V 12V DO204AC

SA7.0A A0G Datasheet
  • 1: $0.16299
  • 7500: $0.15358

SA7.5A A0G

TVS DIODE 7.5V 12.9V DO204AC

SA7.5A A0G Datasheet
  • 1: $0.16299
  • 7500: $0.15358

SA8.0A A0G

TVS DIODE 8V 13.6V DO204AC

SA8.0A A0G Datasheet
  • 1: $0.16299
  • 7500: $0.15358

SA8.5A A0G

TVS DIODE 8.5V 14.4V DO204AC

  • 1: $0.16299
  • 7500: $0.15358

SA9.0A A0G

TVS DIODE 9V 15.4V DO204AC

SA9.0A A0G Datasheet
  • 1: $0.16299
  • 7500: $0.15358

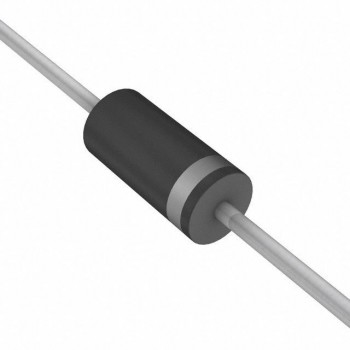

SA10A B0G
