SMBJ120CA-Q

J.W. Miller / Bourns
  • Lifecycle status Active
  • RoHS RoHS Compliant
  • DescriptionTVS DIODE AECQ
  • CategoryTVS - Diodes
  • ECAD Model
  • Share
In Stock: 178

Can ship immediately

Pricing:
  • 1$0.1875

Quote It

Technical Details

  • Series:Automotive, AEC-Q101, SMBJ-Q
  • Package:Tape & Reel (TR)
  • Part Status:Active
  • Type:Zener
  • Unidirectional Channels:-
  • Bidirectional Channels:1
  • Voltage - Reverse Standoff (Typ):120V
  • Voltage - Breakdown (Min):133V
  • Voltage - Clamping (Max) @ Ipp:193V



  • Current - Peak Pulse (10/1000µs):3.1A
  • Power - Peak Pulse:600W
  • Power Line Protection:No
  • Applications:Automotive, Telecom
  • Capacitance @ Frequency:-
  • Operating Temperature:-55°C ~ 150°C (TJ)
  • Mounting Type:Surface Mount
  • Package / Case:DO-214AA, SMB
  • Supplier Device Package:DO-214AA (SMB)

Related Products


P6SMB160CA-Q

TVS DIODE AECQ

  • 1: $0.18750

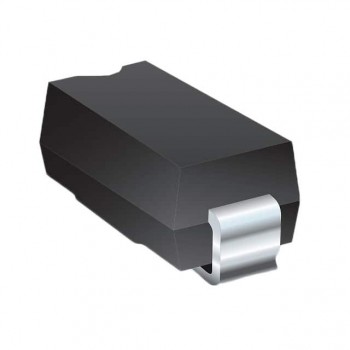

P6SMB200CA-Q
