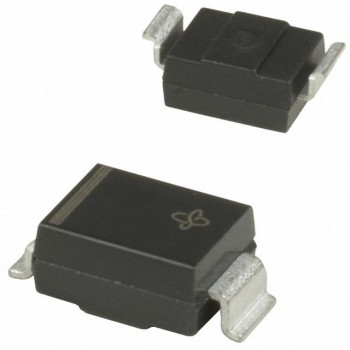

SMBG12A-M3/5B
Vishay General Semiconductor – Diodes Division
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionTVS DIODE 12V 19.9V DO215AA
- CategoryTVS - Diodes
- Datasheet SMBG12A-M3/5B Datasheet
-
ECAD Model
- Share
In Stock: 136
Can ship immediately
Pricing:
- 1$0.2672
- 9,600$0.2672
Quote It
Technical Details
- Series:TransZorb®
- Package:Tape & Reel (TR)
- Part Status:Active
- Type:Zener
- Unidirectional Channels:1
- Bidirectional Channels:-
- Voltage - Reverse Standoff (Typ):12V
- Voltage - Breakdown (Min):13.3V
- Voltage - Clamping (Max) @ Ipp:19.9V
- Current - Peak Pulse (10/1000µs):30.2A
- Power - Peak Pulse:600W
- Power Line Protection:No
- Applications:General Purpose
- Capacitance @ Frequency:-
- Operating Temperature:-65°C ~ 175°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:DO-215AA, SMB Gull Wing
- Supplier Device Package:DO-215AA (SMBG)
