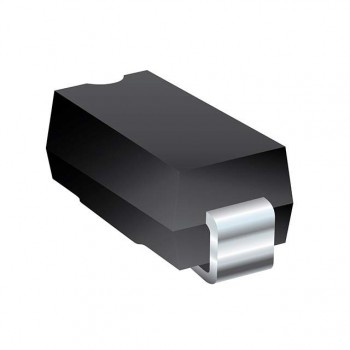

SMBJ14CA-QH
J.W. Miller / Bourns
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionTVS DIODE 14V 23.2V SMB
- CategoryTVS - Diodes
- Datasheet SMBJ14CA-QH Datasheet
-
ECAD Model
- Share
In Stock: 137
Can ship immediately
Pricing:
- 1$0.24382
- 2,000$0.24382
Quote It
Technical Details
- Series:Automotive, AEC-Q101, SMBJ
- Package:Tape & Reel (TR)
- Part Status:Active
- Type:Zener
- Unidirectional Channels:-
- Bidirectional Channels:1
- Voltage - Reverse Standoff (Typ):14V
- Voltage - Breakdown (Min):15.6V
- Voltage - Clamping (Max) @ Ipp:23.2V
- Current - Peak Pulse (10/1000µs):25.9A
- Power - Peak Pulse:600W
- Power Line Protection:No
- Applications:Automotive
- Capacitance @ Frequency:-
- Operating Temperature:-55°C ~ 150°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:DO-214AA, SMB
- Supplier Device Package:SMB (DO-214AA)
