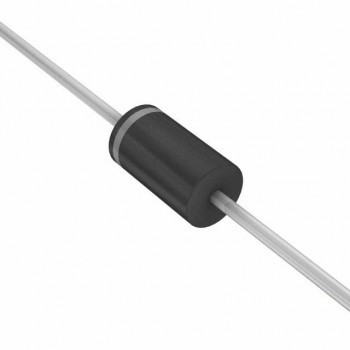

1N6270AHE3_A/D
Vishay General Semiconductor – Diodes Division
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionTVS DIODE 7.78V 13.4V 1.5KE
- CategoryTVS - Diodes
- Datasheet 1N6270AHE3_A/D Datasheet
-
ECAD Model
- Share
In Stock: 183
Can ship immediately
Pricing:
- 1$0.4175
- 2,000$0.4175
Quote It
Technical Details
- Series:Automotive, AEC-Q101, TransZorb®
- Package:Tape & Box (TB)
- Part Status:Active
- Type:Zener
- Unidirectional Channels:1
- Bidirectional Channels:-
- Voltage - Reverse Standoff (Typ):7.78V
- Voltage - Breakdown (Min):8.65V
- Voltage - Clamping (Max) @ Ipp:13.4V
- Current - Peak Pulse (10/1000µs):112A
- Power - Peak Pulse:1500W (1.5kW)
- Power Line Protection:No
- Applications:Automotive
- Capacitance @ Frequency:-
- Operating Temperature:-55°C ~ 175°C (TJ)
- Mounting Type:Through Hole
- Package / Case:DO-201AA, DO-27, Axial
- Supplier Device Package:1.5KE
