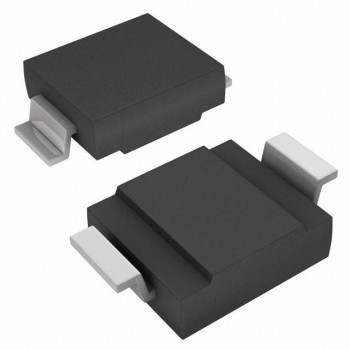

SMCG70AHE3/9AT
Vishay General Semiconductor – Diodes Division
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionTVS DIODE 70V 113V DO215AB
- CategoryTVS - Diodes
- Datasheet SMCG70AHE3/9AT Datasheet
-
ECAD Model
- Share
In Stock: 168
Can ship immediately
Pricing:
- 1$0.4676
- 3,500$0.4676
Quote It
Technical Details
- Series:Automotive, AEC-Q101, TransZorb®
- Package:Tape & Reel (TR)
- Part Status:Active
- Type:Zener
- Unidirectional Channels:1
- Bidirectional Channels:-
- Voltage - Reverse Standoff (Typ):70V
- Voltage - Breakdown (Min):77.8V
- Voltage - Clamping (Max) @ Ipp:113V
- Current - Peak Pulse (10/1000µs):13.3A
- Power - Peak Pulse:1500W (1.5kW)
- Power Line Protection:No
- Applications:Automotive
- Capacitance @ Frequency:-
- Operating Temperature:-55°C ~ 150°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:DO-215AB, SMC Gull Wing
- Supplier Device Package:DO-215AB (SMCG)
