MSMCG75CAE3

Microchip Technology
  • Lifecycle status Active
  • RoHS RoHS Compliant
  • DescriptionTVS DIODE 75V 121V DO215AB
  • CategoryTVS - Diodes
  • ECAD Model
  • Share
In Stock: 132

Can ship immediately

Pricing:
  • 1$1.24
  • 527$1.24

Quote It

Technical Details

  • Series:Military, MIL-PRF-19500
  • Package:Bulk
  • Part Status:Active
  • Type:Zener
  • Unidirectional Channels:-
  • Bidirectional Channels:1
  • Voltage - Reverse Standoff (Typ):75V
  • Voltage - Breakdown (Min):83.3V
  • Voltage - Clamping (Max) @ Ipp:121V



  • Current - Peak Pulse (10/1000µs):12.4A
  • Power - Peak Pulse:1500W (1.5kW)
  • Power Line Protection:No
  • Applications:General Purpose
  • Capacitance @ Frequency:-
  • Operating Temperature:-65°C ~ 150°C (TJ)
  • Mounting Type:Surface Mount
  • Package / Case:DO-215AB, SMC Gull Wing
  • Supplier Device Package:SMCG (DO-215AB)

Related Products


MSMCG78CA

TVS DIODE 78V 126V DO215AB

MSMCG78CA Datasheet
  • 1: $1.24000
  • 527: $1.24000

MSMCG78CAE3

TVS DIODE 78V 126V DO215AB

MSMCG78CAE3 Datasheet
  • 1: $1.24000
  • 527: $1.24000

MSMCG8.0CAE3

TVS DIODE 8V 13.6V DO215AB

MSMCG8.0CAE3 Datasheet
  • 1: $1.24000
  • 527: $1.24000

MSMCG8.5CA

TVS DIODE 8.5V 14.4V DO215AB

  • 1: $1.24000
  • 527: $1.24000

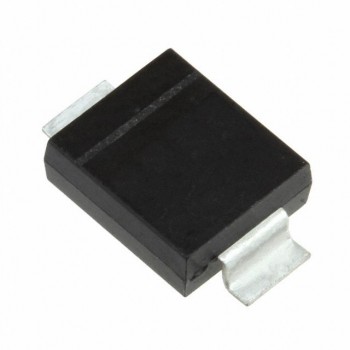

MSMCG8.5CAE3
