• Lifecycle status Active
  • RoHS RoHS Compliant
  • DescriptionTVS DIODE 8.5V 14.4V DO214AB
  • CategoryTVS - Diodes
  • ECAD Model
  • Share
In Stock: 193

Can ship immediately

Pricing:
  • 1$1.69
  • 385$1.69

Quote It

Technical Details

  • Series:Military, MIL-PRF-19500
  • Package:Bulk
  • Part Status:Active
  • Type:Zener
  • Unidirectional Channels:1
  • Bidirectional Channels:-
  • Voltage - Reverse Standoff (Typ):8.5V
  • Voltage - Breakdown (Min):9.44V
  • Voltage - Clamping (Max) @ Ipp:14.4V



  • Current - Peak Pulse (10/1000µs):208.4A
  • Power - Peak Pulse:3000W (3kW)
  • Power Line Protection:No
  • Applications:General Purpose
  • Capacitance @ Frequency:-
  • Operating Temperature:-65°C ~ 150°C (TJ)
  • Mounting Type:Surface Mount
  • Package / Case:DO-214AB, SMC
  • Supplier Device Package:DO-214AB

Related Products


MSMLJ8.5AE3

TVS DIODE 8.5V 14.4V DO214AB

  • 1: $1.69000
  • 385: $1.69000

MSMLJ85AE3

TVS DIODE 85V 137V DO214AB

MSMLJ85AE3 Datasheet
  • 1: $1.69000
  • 385: $1.69000

MSMLJ9.0A

TVS DIODE 9V 15.4V DO214AB

  • 1: $1.69000
  • 385: $1.69000

MSMLJ9.0AE3

TVS DIODE 9V 15.4V DO214AB

  • 1: $1.69000
  • 385: $1.69000

MSMLJ90A

TVS DIODE 90V 146V DO214AB

MSMLJ90A Datasheet
  • 1: $1.69000
  • 385: $1.69000

MSMLJ90AE3

TVS DIODE 90V 146V DO214AB

MSMLJ90AE3 Datasheet
  • 1: $1.69000
  • 385: $1.69000

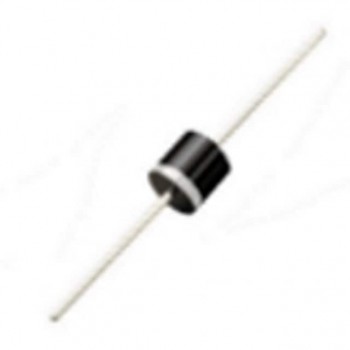

5KP160A

TVS DIODE 160V 259V P600

5KP160A Datasheet
  • 1: $1.76658
  • 800: $1.76658

5KP85A

TVS DIODE 85V 137V P600

  • 1: $1.76658
  • 800: $1.76658

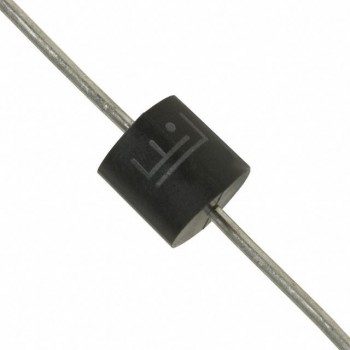

5KP85A-B
