MASMCJ90AE3
Microchip Technology
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionTVS DIODE 90V 146V DO214AB
- CategoryTVS - Diodes
- Datasheet MASMCJ90AE3 Datasheet
-
ECAD Model
- Share
In Stock: 179
Can ship immediately
Pricing:
- 1$4.15005
- 157$4.15005
Quote It
Technical Details
- Series:Military, MIL-PRF-19500
- Package:Bulk
- Part Status:Active
- Type:Zener
- Unidirectional Channels:1
- Bidirectional Channels:-
- Voltage - Reverse Standoff (Typ):90V
- Voltage - Breakdown (Min):100V
- Voltage - Clamping (Max) @ Ipp:146V
- Current - Peak Pulse (10/1000µs):10.3A
- Power - Peak Pulse:1500W (1.5kW)
- Power Line Protection:No
- Applications:General Purpose
- Capacitance @ Frequency:-
- Operating Temperature:-65°C ~ 150°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:DO-214AB, SMC
- Supplier Device Package:DO-214AB (SMCJ)
Related Products

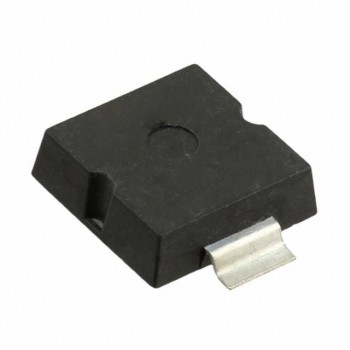

TVS DIODE 10V 17V PLAD
