In Stock: 128

Can ship immediately

Pricing:

Call for price or sumbit a RFQ

Quote It

Technical Details

  • Series:TransZorb®
  • Package:Tape & Reel (TR)
  • Part Status:Obsolete
  • Type:Zener
  • Unidirectional Channels:-
  • Bidirectional Channels:1
  • Voltage - Reverse Standoff (Typ):85V
  • Voltage - Breakdown (Min):94.4V
  • Voltage - Clamping (Max) @ Ipp:151V



  • Current - Peak Pulse (10/1000µs):9.9A
  • Power - Peak Pulse:1500W (1.5kW)
  • Power Line Protection:No
  • Applications:General Purpose
  • Capacitance @ Frequency:-
  • Operating Temperature:-55°C ~ 150°C (TJ)
  • Mounting Type:Surface Mount
  • Package / Case:DO-214AB, SMC
  • Supplier Device Package:DO-214AB (SMCJ)

Related Products




TPSMP13A-E3/84A

TVS DIODE 11.1V 18.2V DO220AA

TPSMP13A-E3/84A Datasheet

Call for price


TPSMP13-E3/84A

TVS DIODE 10.5V 19V DO220AA

TPSMP13-E3/84A Datasheet

Call for price


TPSMP15A-E3/84A

TVS DIODE 12.8V 21.2V DO220AA

TPSMP15A-E3/84A Datasheet

Call for price


TPSMP15-E3/84A

TVS DIODE 12.1V 22V DO220AA

TPSMP15-E3/84A Datasheet

Call for price


TPSMP16-E3/84A

TVS DIODE 12.9V 23.5V DO220AA

TPSMP16-E3/84A Datasheet

Call for price


TPSMP18A-E3/84A

TVS DIODE 15.3V 25.5V DO220AA

TPSMP18A-E3/84A Datasheet

Call for price

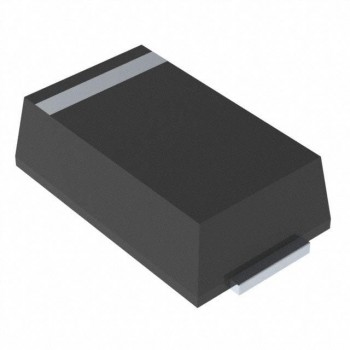

TPSMP18-E3/84A
