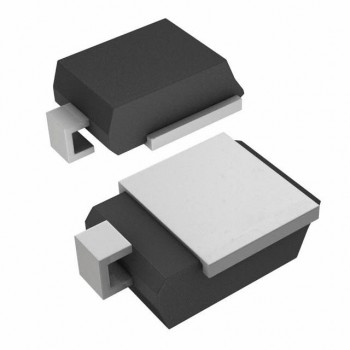

SM5S22AHE3/2E
Vishay General Semiconductor – Diodes Division
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionTVS DIODE 22V 35.5V DO218AB
- CategoryTVS - Diodes
- Datasheet SM5S22AHE3/2E Datasheet
-
ECAD Model
- Share
In Stock: 129
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:Automotive, AEC-Q101, PAR®
- Package:Tape & Reel (TR)
- Part Status:Obsolete
- Type:Zener
- Unidirectional Channels:1
- Bidirectional Channels:-
- Voltage - Reverse Standoff (Typ):22V
- Voltage - Breakdown (Min):24.4V
- Voltage - Clamping (Max) @ Ipp:35.5V
- Current - Peak Pulse (10/1000µs):101A
- Power - Peak Pulse:3600W (3.6kW)
- Power Line Protection:No
- Applications:Automotive
- Capacitance @ Frequency:-
- Operating Temperature:-55°C ~ 175°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:DO-218AB
- Supplier Device Package:DO-218AB
