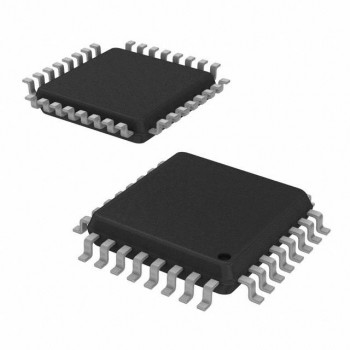

MC9S08DN32ACLC

Technical Details

• Series:S08
• Package:Bulk
• Part Status:Active
• Core Processor:S08
• Core Size:8-Bit
• Speed:40MHz
• Connectivity:I²C, LINbus, SCI, SPI
• Peripherals:LVD, POR, PWM, WDT
• Number of I/O:25
• Program Memory Size:32KB (32K x 8)

• Program Memory Type:FLASH
• EEPROM Size:1K x 8
• RAM Size:1.5K x 8
• Voltage - Supply (Vcc/Vdd):2.7V ~ 5.5V
• Data Converters:A/D 10x12b
• Oscillator Type:External
• Operating Temperature:-40°C ~ 85°C (TA)
• Mounting Type:Surface Mount
• Package / Case:32-LQFP
• Supplier Device Package:32-LQFP (7x7)
