S912XDT384J1VALR

NXP Semiconductors
  • Lifecycle status Active
  • RoHS RoHS Compliant
  • DescriptionIC MCU 16BIT 384KB FLASH 112LQFP
  • CategoryEmbedded - Microcontrollers
  • ECAD Model
  • Share
In Stock: 162

Can ship immediately

Pricing:
  • 1$36.7675
  • 500$18.4506

Quote It

Technical Details

  • Series:HCS12X
  • Package:Tape & Reel (TR)
  • Part Status:Not For New Designs
  • Core Processor:HCS12X
  • Core Size:16-Bit
  • Speed:80MHz
  • Connectivity:CANbus, I²C, SCI, SPI
  • Peripherals:LVD, POR, PWM, WDT
  • Number of I/O:91
  • Program Memory Size:384KB (384K x 8)



  • Program Memory Type:FLASH
  • EEPROM Size:4K x 8
  • RAM Size:20K x 8
  • Voltage - Supply (Vcc/Vdd):3.15V ~ 5.5V
  • Data Converters:A/D 16x12b
  • Oscillator Type:External
  • Operating Temperature:-40°C ~ 105°C (TA)
  • Mounting Type:Surface Mount
  • Package / Case:112-LQFP
  • Supplier Device Package:112-LQFP (20x20)

Related Products


SPC5643LFF2MMM1

IC MCU 32BIT 1MB FLASH 257MAPBGA

SPC5643LFF2MMM1 Datasheet
  • 1: $36.80325
  • 760: $18.46854

S9S12DG12F1VPVER

IC MCU 16BIT 128KB FLASH 112LQFP

  • 1: $36.96000
  • 500: $18.54720

S912XDT512J1VAAR

IC MCU 16BIT 512KB FLASH 80QFP

  • 1: $37.01500
  • 750: $18.57480

S9S12DT12F1MPVE

IC MCU 16BIT 128KB FLASH 112LQFP

S9S12DT12F1MPVE Datasheet
  • 1: $37.09750
  • 300: $19.56050

SPC5746CK1AMKU2R

IC MCU 32BIT 3MB FLASH 176LQFP

SPC5746CK1AMKU2R Datasheet
  • 1: $37.09750
  • 500: $18.61620

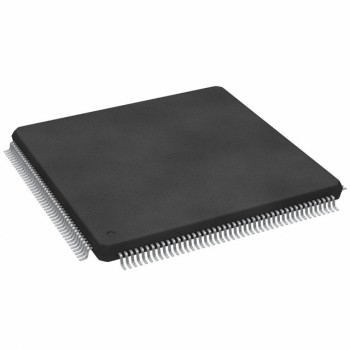

SPC5644BAMLU8

IC MCU 32BIT 1.5MB FLASH 176LQFP

  • 1: $37.18000
  • 200: $20.55040

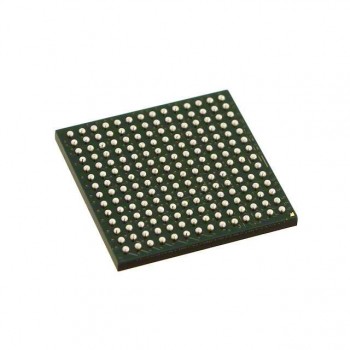

MCF5232CVM100

IC MCU 32BIT ROMLESS 196MAPBGA

MCF5232CVM100 Datasheet
  • 1: $37.51275
  • 10: $34.59066
  • 25: $33.03629

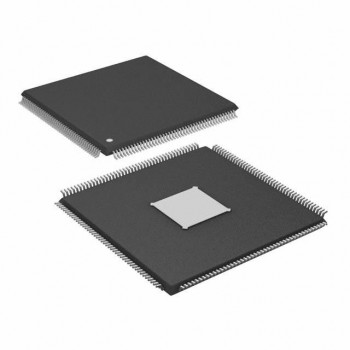

SPC5746BSK1MKU2R

IC MCU 32BIT 3MB FLASH 176LQFP

SPC5746BSK1MKU2R Datasheet
  • 1: $37.53750
  • 500: $18.83700

SP5746BSK1AMKU2R

IC MCU 32BIT 3MB FLASH 176LQFP

  • 1: $37.53750
  • 500: $18.83700

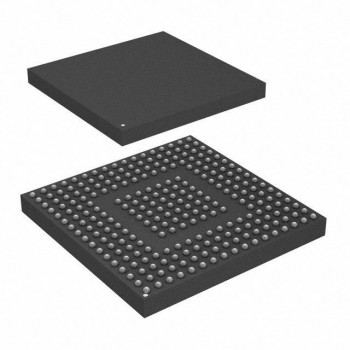

SPC5643LFK0MMM1R
