S9S12DP51J4CPVER

NXP Semiconductors
  • Lifecycle status Active
  • RoHS RoHS Compliant
  • DescriptionIC MCU 16BIT 512KB FLASH 112LQFP
  • CategoryEmbedded - Microcontrollers
  • ECAD Model
  • Share
In Stock: 184

Can ship immediately

Pricing:
  • 1$48.9555
  • 500$24.564

Quote It

Technical Details

  • Series:HCS12
  • Package:Tape & Reel (TR)
  • Part Status:Active
  • Core Processor:HCS12
  • Core Size:16-Bit
  • Speed:25MHz
  • Connectivity:CANbus, I²C, SCI, SPI
  • Peripherals:PWM, WDT
  • Number of I/O:20
  • Program Memory Size:512KB (512K x 8)



  • Program Memory Type:FLASH
  • EEPROM Size:4K x 8
  • RAM Size:14K x 8
  • Voltage - Supply (Vcc/Vdd):2.35V ~ 5.25V
  • Data Converters:A/D 8x10b
  • Oscillator Type:External
  • Operating Temperature:-40°C ~ 85°C (TA)
  • Mounting Type:Surface Mount
  • Package / Case:112-LQFP
  • Supplier Device Package:112-LQFP (20x20)

Related Products


SPC5534MVM80R

IC MCU 32BIT 1MB FLASH 208MAPBGA

SPC5534MVM80R Datasheet
  • 1: $49.00500
  • 1000: $21.54600

SPC5646BCF0VLU8

IC MCU 32BIT 3MB FLASH 176LQFP

SPC5646BCF0VLU8 Datasheet
  • 1: $49.00500
  • 200: $27.08640

SPC5644AF0MMG3R

IC MCU 32BIT 4MB FLASH 208MAPBGA

SPC5644AF0MMG3R Datasheet
  • 1: $49.03250
  • 1000: $23.71390

SP5746CHK0AMMJ6R

IC MCU 32BIT 3MB FLSH 256MAPPBGA

  • 1: $49.14250
  • 1000: $23.76710

SP5746CHK1AMMJ6R

IC MCU 32BIT 3MB FLSH 256MAPPBGA

  • 1: $49.14250
  • 1000: $23.76710

SPC5747CK1MMJ6R

IC MCU 32BIT 4MB FLSH 256MAPPBGA

SPC5747CK1MMJ6R Datasheet
  • 1: $49.19750
  • 1000: $23.79370

SPC5747CSK0AMKU6

IC MCU 32BIT 4MB FLASH 176LQFP

  • 1: $49.19750
  • 200: $27.19280

FS32R372SBK0MMVT

IC MCU 32B 1.3MB FLASH 141MAPBGA

  • 1: $49.19750

SPC5646BAMLU1

IC MCU 32BIT 3MB FLASH 176LQFP

  • 1: $49.36250
  • 200: $27.28400

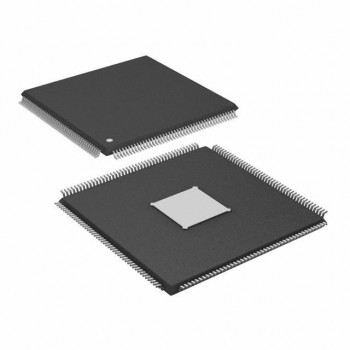

SPC5748CSK0AVKU2
