ABM8G-13.560MHZ-4Y-T3
Abracon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCRYSTAL 13.5600MHZ 10PF SMD
- CategoryCrystals
- Datasheet ABM8G-13.560MHZ-4Y-T3 Datasheet
-
ECAD Model
- Share
In Stock: 297
Can ship immediately
Pricing:
- 1$0.67
- 3,000$0.67
- 6,000$0.6469
- 15,000$0.62379
Quote It
Technical Details
- Series:ABM8G
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:MHz Crystal
- Frequency:13.56 MHz
- Frequency Stability:±30ppm
- Frequency Tolerance:±30ppm
- Load Capacitance:10pF
- ESR (Equivalent Series Resistance):80 Ohms
- Operating Mode:Fundamental
- Operating Temperature:-10°C ~ 60°C
- Ratings:-
- Mounting Type:Surface Mount
- Package / Case:4-SMD, No Lead
- Size / Dimension:0.126" L x 0.098" W (3.20mm x 2.50mm)
- Height - Seated (Max):0.039" (1.00mm)
Related Products

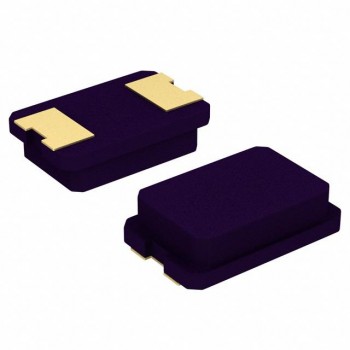

CRYSTAL 24.0000MHZ 12PF SMD
- 1: $0.68000

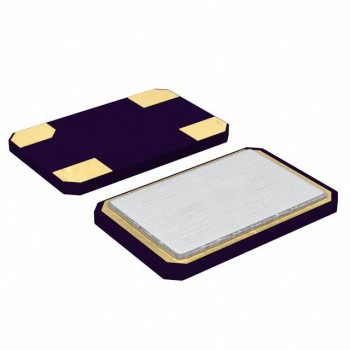

CRYSTAL 16.0000MHZ 8PF SMD
