ABM11AIG-24.000MHZ-2Z-T
Abracon- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCRYSTAL 24.0000MHZ 10PF SMD
- CategoryCrystals
-
ECAD Model
- Share
In Stock: 911
Can ship immediately
Pricing:
- 1$0.73
- 1,000$0.42
- 3,000$0.406
- 5,000$0.392
- 10,000$0.378
Quote It
Technical Details
- Series:ABM11AIG
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:MHz Crystal
- Frequency:24 MHz
- Frequency Stability:±50ppm
- Frequency Tolerance:±20ppm
- Load Capacitance:10pF
- ESR (Equivalent Series Resistance):100 Ohms
- Operating Mode:Fundamental
- Operating Temperature:-40°C ~ 125°C
- Ratings:AEC-Q200
- Mounting Type:Surface Mount
- Package / Case:4-SMD, No Lead
- Size / Dimension:0.079" L x 0.063" W (2.00mm x 1.60mm)
- Height - Seated (Max):0.022" (0.55mm)
Related Products
CRYSTAL 12.0000MHZ 12PF SMD
- 1: $0.73000
- 1000: $0.38550
- 3000: $0.37265
CRYSTAL 40.0000MHZ 12PF SMD
- 1: $0.73000
- 1000: $0.39750
- 3000: $0.38425
CRYSTAL 48.0000MHZ 10PF SMD
- 1: $0.74000
- 1000: $0.42600
- 3000: $0.41180
CRYSTAL 24.5760MHZ 6PF SMD
ABM11W-24.5760MHZ-6-B1U-T3 Datasheet- 1: $0.75000
- 3000: $0.43500
- 6000: $0.42000

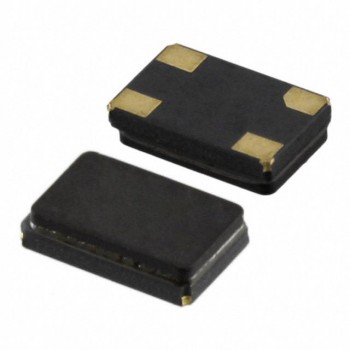

CRYSTAL 22.1184MHZ 18PF SMD
