ECS-300-10-37-JTN-TR
ECS Inc. International
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCRYSTAL 30.0000MHZ 10PF SMD
- CategoryCrystals
- Datasheet ECS-300-10-37-JTN-TR Datasheet
-
ECAD Model
- Share
In Stock: 9,551,185
Can ship immediately
Pricing:
- 1$0.67
- 1,000$0.3568
- 3,000$0.3345
- 5,000$0.32335
- 10,000$0.3122
Quote It
Technical Details
- Series:ECX-1637
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:MHz Crystal
- Frequency:30 MHz
- Frequency Stability:±20ppm
- Frequency Tolerance:±20ppm
- Load Capacitance:10pF
- ESR (Equivalent Series Resistance):60 Ohms
- Operating Mode:Fundamental
- Operating Temperature:-40°C ~ 85°C
- Ratings:-
- Mounting Type:Surface Mount
- Package / Case:4-SMD, No Lead
- Size / Dimension:0.079" L x 0.063" W (2.00mm x 1.60mm)
- Height - Seated (Max):0.022" (0.55mm)
Related Products
CRYSTAL 24.0000MHZ 18PF SMD
- 1: $0.67000
CRYSTAL 25.0000MHZ 10PF SMD
ABM8G-25.000MHZ-10-R50-B4Y-T Datasheet- 1: $0.67000
- 1000: $0.40500
- 3000: $0.39150
CRYSTAL 12.0000MHZ 12PF SMD
- 1: $0.67000

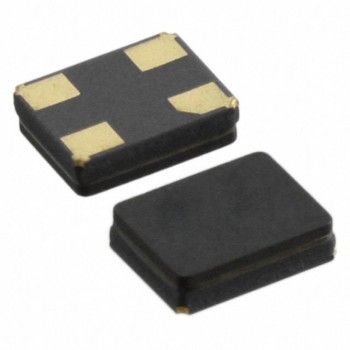

CRYSTAL 12.0000MHZ 8PF SMD
ABM8G-12.000MHZ-8-B2X-T Datasheet- 1: $0.67000
- 1000: $0.45630
- 3000: $0.44280

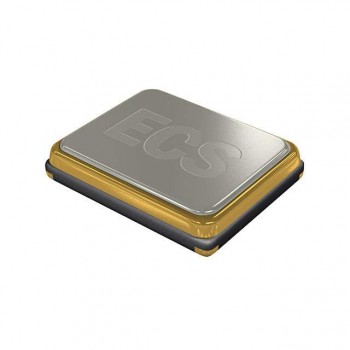

CRYSTAL 28.63636MHZ 10PF SMD
