9C16000418

TXC Corporation
  • Lifecycle status Active
  • RoHS RoHS Compliant
  • DescriptionCRYSTAL 16.0000MHZ 20PF SMD
  • CategoryCrystals
  • Datasheet 9C16000418 Datasheet
  • ECAD Model
  • Share
In Stock: 153

Can ship immediately

Pricing:
  • 1$0.192
  • 1,000$0.192

Quote It

Technical Details

  • Series:9C
  • Package:Tape & Reel (TR)
  • Part Status:Active
  • Type:MHz Crystal
  • Frequency:16 MHz
  • Frequency Stability:±25ppm
  • Frequency Tolerance:±10ppm
  • Load Capacitance:20pF



  • ESR (Equivalent Series Resistance):30 Ohms
  • Operating Mode:-
  • Operating Temperature:-20°C ~ 85°C
  • Ratings:-
  • Mounting Type:Surface Mount
  • Package / Case:HC-49/US
  • Size / Dimension:0.449" L x 0.189" W (11.40mm x 4.80mm)
  • Height - Seated (Max):0.161" (4.10mm)

Related Products


9C16070005

CRYSTAL 16.0000MHZ 9PF SMD

9C16070005 Datasheet
  • 1: $0.19200
  • 1000: $0.19200

9C16070012

CRYSTAL 16.0000MHZ 18PF SMD

9C16070012 Datasheet
  • 1: $0.19200
  • 1000: $0.19200

9C16370003

CRYSTAL 16.3840MHZ 18PF SMD

9C16370003 Datasheet
  • 1: $0.19200
  • 1000: $0.19200

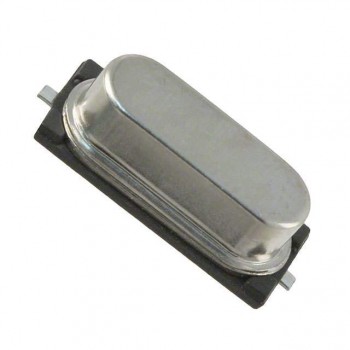

9C20000001
