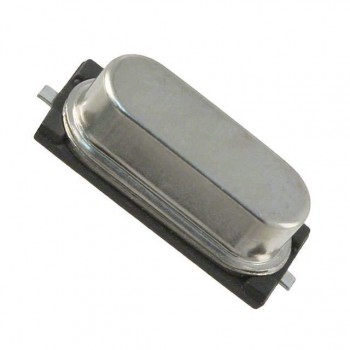

9C-20.000MAGE-T
TXC Corporation
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCRYSTAL 20.0000MHZ 12PF SMD
- CategoryCrystals
- Datasheet 9C-20.000MAGE-T Datasheet
-
ECAD Model
- Share
In Stock: 112
Can ship immediately
Pricing:
- 1$0.192
- 1,000$0.192
Quote It
Technical Details
- Series:9C
- Package:Tape & Reel (TR)
- Part Status:Active
- Type:MHz Crystal
- Frequency:20 MHz
- Frequency Stability:±30ppm
- Frequency Tolerance:±50ppm
- Load Capacitance:12pF
- ESR (Equivalent Series Resistance):30 Ohms
- Operating Mode:Fundamental
- Operating Temperature:-40°C ~ 85°C
- Ratings:-
- Mounting Type:Surface Mount
- Package / Case:HC-49/US
- Size / Dimension:0.449" L x 0.189" W (11.40mm x 4.80mm)
- Height - Seated (Max):0.161" (4.10mm)
