AM-13.560MAGE-T

TXC Corporation
In Stock: 177

Can ship immediately

Pricing:
  • 1$0.464
  • 3,000$0.464

Quote It

Technical Details

  • Series:AM
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Active
  • Type:MHz Crystal
  • Frequency:13.56 MHz
  • Frequency Stability:±50ppm
  • Frequency Tolerance:±30ppm
  • Load Capacitance:12pF



  • ESR (Equivalent Series Resistance):100 Ohms
  • Operating Mode:Fundamental
  • Operating Temperature:-40°C ~ 85°C
  • Ratings:AEC-Q200
  • Mounting Type:Surface Mount
  • Package / Case:4-SMD, No Lead
  • Size / Dimension:0.126" L x 0.098" W (3.20mm x 2.50mm)
  • Height - Seated (Max):0.031" (0.80mm)

Related Products


AM-28.63636MAGK-T

CRYSTAL 28.63636MHZ 20PF SMD

AM-28.63636MAGK-T Datasheet
  • 1: $0.46400
  • 3000: $0.46400

AM-33.333MAGV-T

CRYSTAL 33.3330MHZ 8PF SMD

AM-33.333MAGV-T Datasheet
  • 1: $0.46400
  • 3000: $0.46400

7M-16.384MAHE-T

CRYSTAL 16.3840MHZ 12PF SMD

7M-16.384MAHE-T Datasheet
  • 1: $0.46400
  • 3000: $0.39576

7M-38.400MAHE-T

CRYSTAL 38.4000MHZ 12PF SMD

7M-38.400MAHE-T Datasheet
  • 1: $0.46400
  • 3000: $0.39576

CX2520DB24576D0GEJCC

CRYSTAL 24.5760MHZ 8PF SMD

CX2520DB24576D0GEJCC Datasheet
  • 1: $0.83000
  • 3000: $0.83000

CX2520DB32000D0GEJCC

CRYSTAL 32.0000MHZ 8PF SMD

CX2520DB32000D0GEJCC Datasheet
  • 1: $0.83000
  • 3000: $0.83000

CX2520DB48000D0GEJCC

CRYSTAL 48.0000MHZ 8PF SMD

CX2520DB48000D0GEJCC Datasheet
  • 1: $0.83000
  • 3000: $0.83000

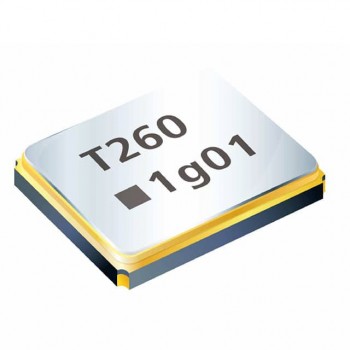

7M-16.66667MAHE-T
