749810-7
TE Connectivity AMP Connectors
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN D-SUB PLUG 9POS IDC
- CategoryD-Sub Connectors
- Datasheet 749810-7 Datasheet
-
ECAD Model
- Share
In Stock: 146
Can ship immediately
Pricing:
- 1$13.15
- 10$12.215
- 25$10.96192
- 50$10.6486
- 100$9.39583
Quote It
Technical Details
- Series:AMPLIMITE HDE-20
- Package:Bulk
- Part Status:Active
- Connector Style:D-Sub
- Connector Type:Plug, Male Pins
- Number of Positions:9
- Number of Rows:2
- Mounting Type:Free Hanging (In-Line)
- Shell Size, Connector Layout:1 (DE, E)
- Contact Type:Signal
- Flange Feature:Cable Side, Male Short Screw (4-40)
- Termination:IDC, Discrete Wire
- Shell Material, Finish:Steel, Tin Plated
- Contact Finish:Gold
- Contact Finish Thickness:Flash
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Current Rating (Amps):Varies by Wire Gauge
- Backset Spacing:-
- Features:Grounding Indents, Shielded
Related Products
CONN D-SUB PLUG 25POS SLDR CUP
- 1: $13.44000
- 10: $12.21818
- 25: $11.91262

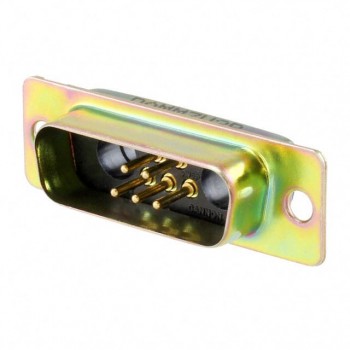

CONN D-SUB PLUG 7POS PNL MNT
