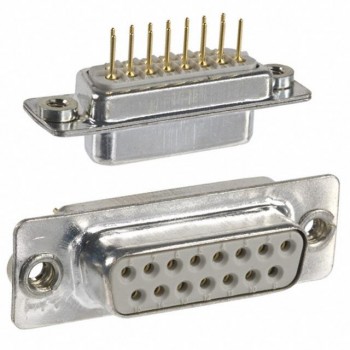

XM2F-1540-132L
Omron Electronics Components
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN D-SUB RCPT 15POS VERT SLDR
- CategoryD-Sub Connectors
- Datasheet XM2F-1540-132L Datasheet
-
ECAD Model
- Share
In Stock: 173
Can ship immediately
Pricing:
- 1$6.73
- 10$6.47776
- 25$5.95464
- 70$5.69336
- 140$5.432
- 280$4.90908
- 560$4.64766
- 1,050$4.24098
Quote It
Technical Details
- Series:XM2F
- Package:Tray
- Part Status:Active
- Connector Style:D-Sub
- Connector Type:Receptacle, Female Sockets
- Number of Positions:15
- Number of Rows:2
- Mounting Type:Through Hole
- Shell Size, Connector Layout:2 (DA, A)
- Contact Type:Signal
- Flange Feature:Mating Side, Female Screwlock (4-40)
- Termination:Solder
- Shell Material, Finish:Steel, Nickel Plated
- Contact Finish:Gold
- Contact Finish Thickness:Flash
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Current Rating (Amps):3A
- Backset Spacing:-
- Features:Board Lock, Shielded
