09695117247
HARTING
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN D-SUB PLUG 24POS SLDR CUP
- CategoryD-Sub Connectors
- Datasheet 09695117247 Datasheet
-
ECAD Model
- Share
In Stock: 148
Can ship immediately
Pricing:
- 1$10.95
- 10$10.47694
- 25$9.52449
- 50$9.04827
- 100$8.81016
- 250$7.85773
- 500$7.38148
- 1,000$6.52428
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Active
- Connector Style:D-Sub, Combo
- Connector Type:Plug, Male Pins
- Number of Positions:24 (17 + 7 Coax or Power)
- Number of Rows:2
- Mounting Type:Free Hanging (In-Line)
- Shell Size, Connector Layout:5 (DD, D) - 24W7
- Contact Type:Signal and Coax or Power (Not Included)
- Flange Feature:Housing/Shell (Unthreaded)
- Termination:Solder Cup
- Shell Material, Finish:Steel, Tin Plated
- Contact Finish:-
- Contact Finish Thickness:-
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Current Rating (Amps):5A
- Backset Spacing:-
- Features:Grounding Indents
Related Products

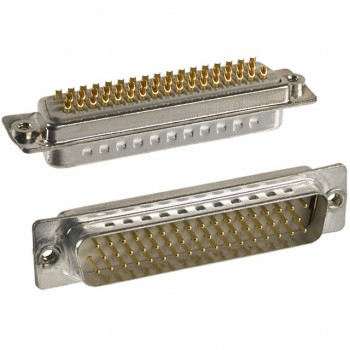

CONN D-SUB PLUG 37POS R/A SLDR
