M83513/10-C01CP
Vitelec / Cinch Connectivity Solutions- Lifecycle status Active
- RoHS RoHS Compliant
- Description21 POS PLUG RED. 90 PCB CD PLTD
- CategoryD-Sub Connectors
-
ECAD Model
- Share
In Stock: 112
Can ship immediately
Pricing:
- 1$77.28
Quote It
Technical Details
- Series:Military, MIL-C-83513, M83513
- Package:Bag
- Part Status:Active
- Connector Style:D-Type, Micro-D
- Connector Type:Plug, Male Pins
- Number of Positions:21
- Number of Rows:3
- Mounting Type:Through Hole, Right Angle
- Shell Size, Connector Layout:0.050 Pitch x 0.043 Row to Row
- Contact Type:Signal
- Flange Feature:Mating Side, Female Screwlock (2-56)
- Termination:Solder
- Shell Material, Finish:Aluminum Alloy, Yellow Chromate Plated Cadmium
- Contact Finish:Gold
- Contact Finish Thickness:50.0µin (1.27µm)
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Current Rating (Amps):3A
- Backset Spacing:0.130" (3.30mm)
- Features:-
Related Products
CONN MICRO-D PLUG 15POS R/A SLDR
- 1: $77.60000
CONN MICRO-D RCPT 21P VERT SLDR
- 1: $79.46000
25 POS PLUG RED. 90 PCB CD PLTD
- 1: $79.49000
15 POS PLUG STD 90 PCB CD PLTD
- 1: $79.88000

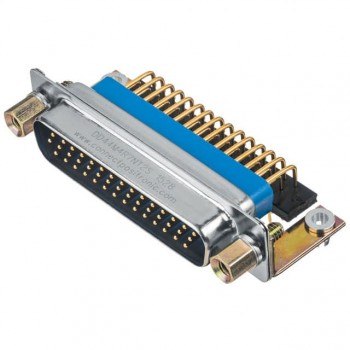

CONN D-SUB HD PLUG 44P R/A SLDR
