M83513/15-H01CP
Vitelec / Cinch Connectivity Solutions- Lifecycle status Active
- RoHS RoHS Compliant
- Description100 POS RCPT RED. 90 PCB CD PLTD
- CategoryD-Sub Connectors
-
ECAD Model
- Share
In Stock: 105
Can ship immediately
Pricing:
- 1$211.62
Quote It
Technical Details
- Series:Military, MIL-C-83513, M83513
- Package:Bag
- Part Status:Active
- Connector Style:D-Type, Micro-D
- Connector Type:Receptacle, Female Sockets
- Number of Positions:100
- Number of Rows:8
- Mounting Type:Through Hole, Right Angle
- Shell Size, Connector Layout:0.050 Pitch x 0.050 Row to Row
- Contact Type:Signal
- Flange Feature:Mating Side, Female Screwlock (4-40)
- Termination:Solder
- Shell Material, Finish:Aluminum Alloy, Yellow Chromate Plated Cadmium
- Contact Finish:Gold
- Contact Finish Thickness:50.0µin (1.27µm)
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Current Rating (Amps):3A
- Backset Spacing:0.200" (5.08mm)
- Features:-
Related Products
CONN MICRO-D RCPT 100P VERT SLDR
- 1: $215.67000
CONN MICRO-D PLUG 100P R/A SLDR
- 1: $244.34000
85-PIN FEMALE, SMT HORIZONTAL
- 1: $254.82000
85-PIN FEMALE, SMT VERTICAL
- 1: $260.30000

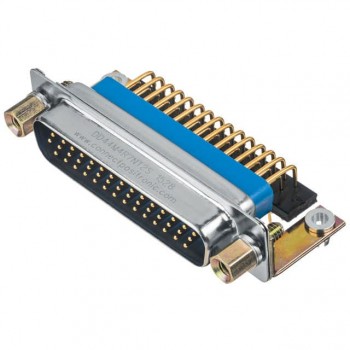

CONN D-SUB HD PLUG 78P SLDR CUP
