5747827-6
TE Connectivity AMP Connectors- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN D-SUB PLUG 9POS R/A SLDR
- CategoryD-Sub Connectors
- Datasheet 5747827-6 Datasheet
-
ECAD Model
- Share
In Stock: 185
Can ship immediately
Pricing:
- 1$9.93558
- 1,190$9.59728
Quote It
Technical Details
- Series:AMPLIMITE HD-20
- Package:Tube
- Part Status:Active
- Connector Style:D-Sub
- Connector Type:Plug, Male Pins
- Number of Positions:9
- Number of Rows:2
- Mounting Type:Through Hole, Right Angle
- Shell Size, Connector Layout:1 (DE, E)
- Contact Type:Signal
- Flange Feature:Mating Side, Female Screwlock (4-40)
- Termination:Solder
- Shell Material, Finish:Steel, Tin Plated
- Contact Finish:Gold
- Contact Finish Thickness:-
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Current Rating (Amps):6A
- Backset Spacing:0.590" (14.99mm)
- Features:Board Lock, Ground Strap, Grounding Indents
Related Products
CONN D-SUB RCPT 25P PNL MNT SLDR
- 1: $9.93783
- 400: $9.93783
CONN D-SUB PLUG 25POS R/A SLDR
- 1: $9.94110
- 200: $9.94110
CONN D-SUB PLUG 25POS R/A SLDR
- 1: $9.94110
- 200: $9.94110

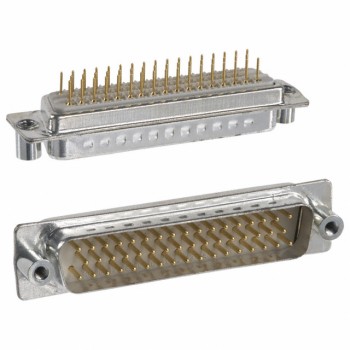

CONN D-SUB HD PLUG 62P VERT SLDR
