1-745496-4
TE Connectivity AMP Connectors- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN D-SUB PLUG 25POS IDC
- CategoryD-Sub Connectors
- Datasheet 1-745496-4 Datasheet
-
ECAD Model
- Share
In Stock: 147
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:AMPLIMITE HDE-20
- Package:Bulk
- Part Status:Obsolete
- Connector Style:D-Sub
- Connector Type:Plug, Male Pins
- Number of Positions:25
- Number of Rows:2
- Mounting Type:Free Hanging (In-Line)
- Shell Size, Connector Layout:3 (DB, B)
- Contact Type:Signal
- Flange Feature:Housing/Shell (Unthreaded)
- Termination:IDC, Discrete Wire
- Shell Material, Finish:Steel, Tin Plated
- Contact Finish:Gold
- Contact Finish Thickness:50.0µin (1.27µm)
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Current Rating (Amps):Varies by Wire Gauge
- Backset Spacing:-
- Features:Grounding Indents
Related Products

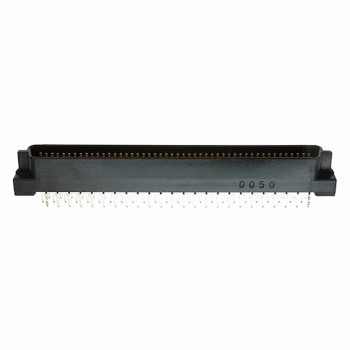

CONN D-TYPE CAP 68POS R/A KINKED
Call for price

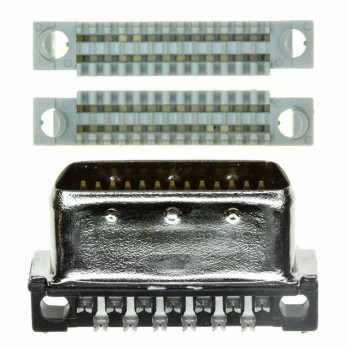

CONN D-TYPE PLUG 50P VERT KINKED
