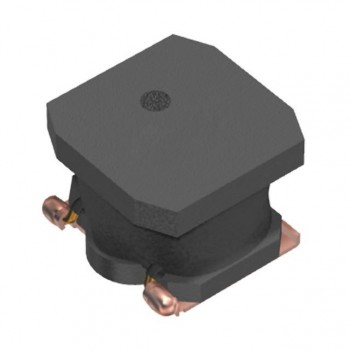

VLS201612ET-3R3M
TDK Corporation
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 3.3UH 790MA 357 MOHM
- CategoryFixed Inductors
- Datasheet VLS201612ET-3R3M Datasheet
-
ECAD Model
- Share
In Stock: 5,030
Can ship immediately
Pricing:
- 1$0.42
- 2,000$0.1683
- 4,000$0.15895
- 6,000$0.1496
- 10,000$0.14493
- 50,000$0.13558
Quote It
Technical Details
- Series:VLS
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Not For New Designs
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:3.3 µH
- Tolerance:±20%
- Current Rating (Amps):790 mA
- Current - Saturation (Isat):790mA
- Shielding:Shielded
- DC Resistance (DCR):357mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:-
- Ratings:-
- Operating Temperature:-40°C ~ 105°C
- Inductance Frequency - Test:1 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.079" L x 0.063" W (2.00mm x 1.60mm)
- Height - Seated (Max):0.047" (1.20mm)
