MPX1D1250L3R3
KEMET
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 3.3UH 16.8A 7.4 MOHM
- CategoryFixed Inductors
-
ECAD Model
- Share
In Stock: 363
Can ship immediately
Pricing:
- 1$3.16
Quote It
Technical Details
- Series:METCOM MPX
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Wirewound
- Material - Core:Metal Composite
- Inductance:3.3 µH
- Tolerance:±20%
- Current Rating (Amps):16.8 A
- Current - Saturation (Isat):22A
- Shielding:Shielded
- DC Resistance (DCR):7.4mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:17MHz
- Ratings:-
- Operating Temperature:-55°C ~ 155°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.520" L x 0.492" W (13.20mm x 12.50mm)
- Height - Seated (Max):0.197" (5.00mm)
Related Products
FIXED IND 10UH 12.2A 16.1 MOHM
- 1: $3.16000
FIXED IND 330NH 45.6A 1.2 MOHM
- 1: $3.16000
FIXED IND 470NH 38.2A 1.7 MOHM
- 1: $3.16000
FIXED IND 2.2UH 21A 4.8 MOHM SMD
- 1: $3.16000
FIXED IND 220NH 42.7A 1.2 MOHM
- 1: $3.16000

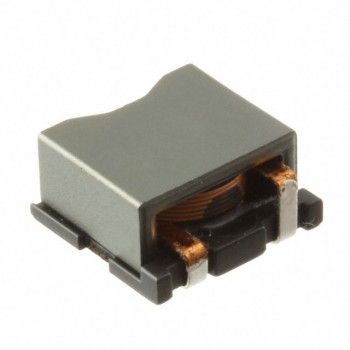

FIXED IND 4.3UH 7.2A 9.55 MOHM
