B82422A3330K100
TDK EPCOS
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 33NH 540MA 170 MOHM
- CategoryFixed Inductors
- Datasheet B82422A3330K100 Datasheet
-
ECAD Model
- Share
In Stock: 5,343
Can ship immediately
Pricing:
- 1$0.6
- 2,000$0.21346
- 4,000$0.2009
- 6,000$0.19463
- 10,000$0.18835
- 50,000$0.17579
Quote It
Technical Details
- Series:SIMID
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Wirewound
- Material - Core:Ceramic
- Inductance:33 nH
- Tolerance:±10%
- Current Rating (Amps):540 mA
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):170mOhm Max
- Q @ Freq:20 @ 50MHz
- Frequency - Self Resonant:1.7GHz
- Ratings:AEC-Q200
- Operating Temperature:-55°C ~ 125°C
- Inductance Frequency - Test:10 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:2-SMD, J-Lead
- Supplier Device Package:1210 (3225 Metric)
- Size / Dimension:0.126" L x 0.098" W (3.20mm x 2.50mm)
- Height - Seated (Max):0.083" (2.10mm)
Related Products
FIXED IND 22UH 1.4A 135 MOHM SMD
- 1: $0.55000
FIXED IND 22UH 1A 260 MOHM SMD
- 1: $0.55000
FIXED IND 150UH 700MA 988 MOHM
- 1: $0.61000
FIXED IND 33UH 6045 SMD
- 1: $0.55000
FIXED IND 15UH 6045 SMD
- 1: $0.55000
FIXED IND 6.8UH 6045 SMD
- 1: $0.55000
FIXED IND 2.2UH 6045 SMD
- 1: $0.55000

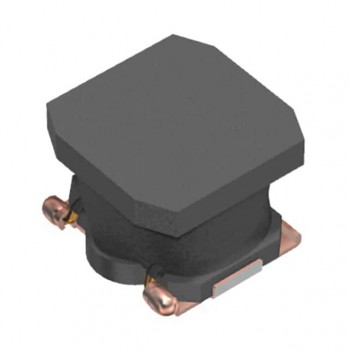

FIXED IND 3.3UH 6045 SMD
