B82422A1182J100
TDK EPCOS
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 1.8UH 290MA 600 MOHM
- CategoryFixed Inductors
- Datasheet B82422A1182J100 Datasheet
-
ECAD Model
- Share
In Stock: 3,387
Can ship immediately
Pricing:
- 1$0.63
- 6,000$0.20356
Quote It
Technical Details
- Series:SIMID
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:1.8 µH
- Tolerance:±5%
- Current Rating (Amps):290 mA
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):600mOhm Max
- Q @ Freq:25 @ 7.96MHz
- Frequency - Self Resonant:250MHz
- Ratings:AEC-Q200
- Operating Temperature:-55°C ~ 125°C
- Inductance Frequency - Test:1 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:2-SMD, J-Lead
- Supplier Device Package:1210 (3225 Metric)
- Size / Dimension:0.126" L x 0.098" W (3.20mm x 2.50mm)
- Height - Seated (Max):0.083" (2.10mm)
Related Products

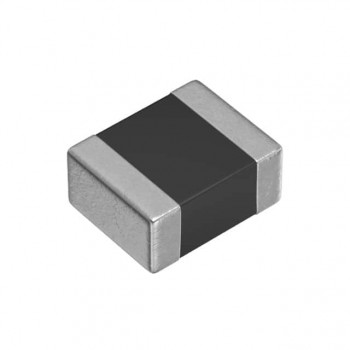

FIXED IND 1UH 3.9A 41MOHM SMD
- 1: $0.58000
- 2000: $0.24650

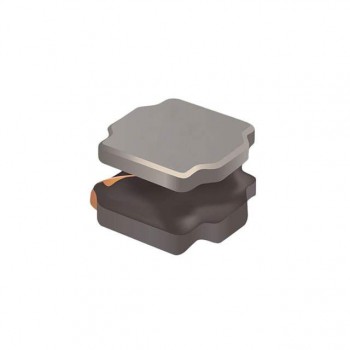

FIXED IND 1.5UH 3.1A 60 MOHM SMD
