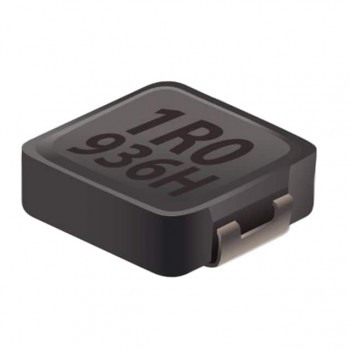

SRP5030C-1R5M
J.W. Miller / Bourns
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 1.5UH 8A 19 MOHM SMD
- CategoryFixed Inductors
-
ECAD Model
- Share
In Stock: 2,420
Can ship immediately
Pricing:
- 1$1.33
Quote It
Technical Details
- Series:SRP5030C
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:-
- Material - Core:Metal
- Inductance:1.5 µH
- Tolerance:±20%
- Current Rating (Amps):8 A
- Current - Saturation (Isat):10.5A
- Shielding:Shielded
- DC Resistance (DCR):19mOhm Max
- Q @ Freq:20 @ 100kHz
- Frequency - Self Resonant:35MHz
- Ratings:-
- Operating Temperature:-40°C ~ 125°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.224" L x 0.205" W (5.70mm x 5.20mm)
- Height - Seated (Max):0.118" (3.00mm)
