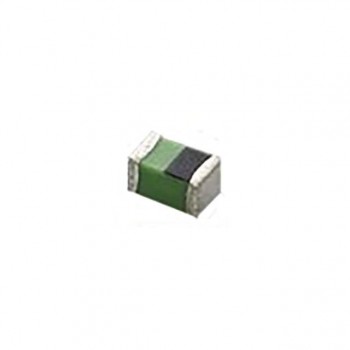

LQG15WZ22NJ02D
TOKO / Murata
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 22NH 230MA 1.1 OHM SMD
- CategoryFixed Inductors
-
ECAD Model
- Share
In Stock: 9,550
Can ship immediately
Pricing:
- 1$0.14
Quote It
Technical Details
- Series:LQG15
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Multilayer
- Material - Core:-
- Inductance:22 nH
- Tolerance:±5%
- Current Rating (Amps):230 mA
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):1.1Ohm Max
- Q @ Freq:20 @ 250MHz
- Frequency - Self Resonant:2.1GHz
- Ratings:AEC-Q200
- Operating Temperature:-55°C ~ 125°C
- Inductance Frequency - Test:100 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:0402 (1005 Metric)
- Supplier Device Package:0402
- Size / Dimension:0.039" L x 0.020" W (1.00mm x 0.50mm)
- Height - Seated (Max):0.022" (0.55mm)
