LQW15AN1N6D8ZD
TOKO / Murata
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 1.6NH 1.45A 45 MOHM
- CategoryFixed Inductors
- Datasheet LQW15AN1N6D8ZD Datasheet
-
ECAD Model
- Share
In Stock: 4,998
Can ship immediately
Pricing:
- 1$0.24
- 10,000$0.07505
- 30,000$0.07271
- 50,000$0.07036
- 100,000$0.06802
Quote It
Technical Details
- Series:LQW15
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Wirewound
- Material - Core:Non-Magnetic
- Inductance:1.6 nH
- Tolerance:±0.5nH
- Current Rating (Amps):1.45 A
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):45mOhm Max
- Q @ Freq:20 @ 250MHz
- Frequency - Self Resonant:18GHz
- Ratings:AEC-Q200
- Operating Temperature:-55°C ~ 125°C
- Inductance Frequency - Test:100 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:0402 (1005 Metric)
- Supplier Device Package:0402 (1005 Metric)
- Size / Dimension:0.039" L x 0.024" W (1.00mm x 0.60mm)
- Height - Seated (Max):0.024" (0.60mm)
Related Products

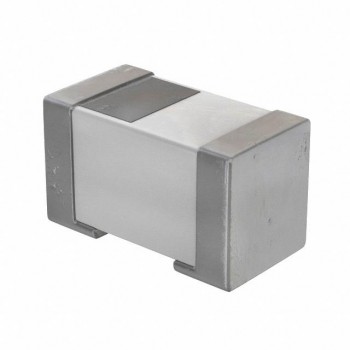

FIXED IND 47NH 190MA 1.6 OHM SMD
