MLF2012DR56MTD25
TDK Corporation
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 560NH 150MA 550 MOHM
- CategoryFixed Inductors
- Datasheet MLF2012DR56MTD25 Datasheet
-
ECAD Model
- Share
In Stock: 2,049
Can ship immediately
Pricing:
- 1$0.26
- 2,000$0.1092
- 4,000$0.0936
- 6,000$0.0884
- 10,000$0.0832
- 50,000$0.078
- 100,000$0.0754
Quote It
Technical Details
- Series:MLF
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Multilayer
- Material - Core:Ferrite
- Inductance:560 nH
- Tolerance:±20%
- Current Rating (Amps):150 mA
- Current - Saturation (Isat):-
- Shielding:Shielded
- DC Resistance (DCR):550mOhm Max
- Q @ Freq:25 @ 25MHz
- Frequency - Self Resonant:150MHz
- Ratings:AEC-Q200
- Operating Temperature:-55°C ~ 125°C
- Inductance Frequency - Test:25 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:0805 (2012 Metric)
- Supplier Device Package:0805 (2012 Metric)
- Size / Dimension:0.079" L x 0.049" W (2.00mm x 1.25mm)
- Height - Seated (Max):0.057" (1.45mm)
Related Products

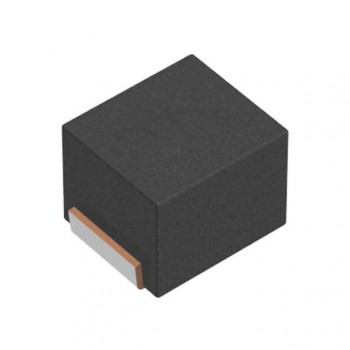

FIXED IND 120NH 650MA 630 MOHM
- 1: $0.24000

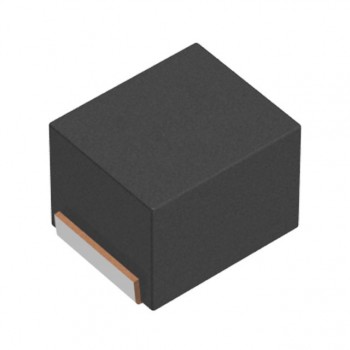

FIXED IND 27NH 600MA 230 MOHM
