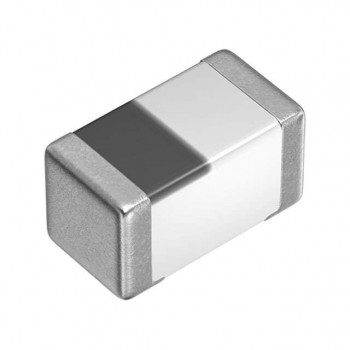

MHQ0603P2N1BTD25
TDK Corporation
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 2.1NH 700MA 150 MOHM
- CategoryFixed Inductors
- Datasheet MHQ0603P2N1BTD25 Datasheet
-
ECAD Model
- Share
In Stock: 4,150
Can ship immediately
Pricing:
- 1$0.58
Quote It
Technical Details
- Series:MHQ-P
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Multilayer
- Material - Core:Ceramic, Non-Magnetic
- Inductance:2.1 nH
- Tolerance:±0.1nH
- Current Rating (Amps):700 mA
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):150mOhm Max
- Q @ Freq:16 @ 500MHz
- Frequency - Self Resonant:10GHz
- Ratings:AEC-Q200
- Operating Temperature:-55°C ~ 125°C
- Inductance Frequency - Test:500 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:0201 (0603 Metric)
- Supplier Device Package:0201 (0603 Metric)
- Size / Dimension:0.026" L x 0.014" W (0.65mm x 0.35mm)
- Height - Seated (Max):0.016" (0.40mm)
