LQW03AW10NJ00D
TOKO / Murata
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 10NH 250MA 460 MOHM
- CategoryFixed Inductors
- Datasheet LQW03AW10NJ00D Datasheet
-
ECAD Model
- Share
In Stock: 4,509
Can ship immediately
Pricing:
- 1$0.82
- 10,000$0.3087
- 30,000$0.29841
Quote It
Technical Details
- Series:LQW03
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Wirewound
- Material - Core:-
- Inductance:10 nH
- Tolerance:±5%
- Current Rating (Amps):250 mA
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):460mOhm Max
- Q @ Freq:37 @ 900MHz
- Frequency - Self Resonant:7.2GHz
- Ratings:-
- Operating Temperature:-55°C ~ 125°C
- Inductance Frequency - Test:100 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.021" L x 0.016" W (0.53mm x 0.40mm)
- Height - Seated (Max):0.018" (0.45mm)
Related Products

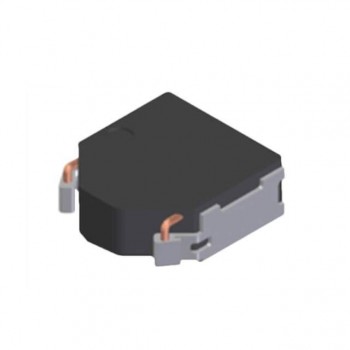

FIXED IND 4.7UH 2A 180 MOHM SMD
