PA4333.332NLT
PulseLarsen Antenna
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 3.3UH 4.6A 30.5 MOHM
- CategoryFixed Inductors
- Datasheet PA4333.332NLT Datasheet
-
ECAD Model
- Share
In Stock: 169
Can ship immediately
Pricing:
- 1$0.84
- 1,000$0.34
- 3,000$0.32
- 5,000$0.31
- 10,000$0.3
- 25,000$0.29
Quote It
Technical Details
- Series:PA4333.XXXNLT
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Wirewound
- Material - Core:Iron
- Inductance:3.3 µH
- Tolerance:±20%
- Current Rating (Amps):4.6 A
- Current - Saturation (Isat):4.6A
- Shielding:Shielded
- DC Resistance (DCR):30.5mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:23MHz
- Ratings:-
- Operating Temperature:-40°C ~ 125°C
- Inductance Frequency - Test:1 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.291" L x 0.268" W (7.40mm x 6.80mm)
- Height - Seated (Max):0.126" (3.20mm)
Related Products

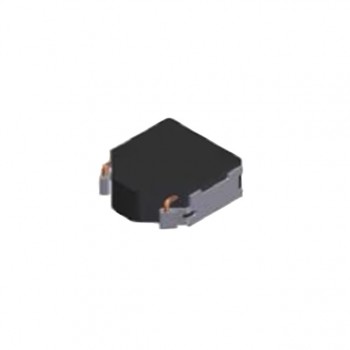

FIXED IND 1.5UH 3.3A 64 MOHM SMD
FDSD0412-H-1R5M=P3 Datasheet- 1: $0.88000
- 4000: $0.35166
- 8000: $0.34068
FIXED IND 330NH 6.4A 19 MOHM SMD
FDSD0412-H-R33M=P3 Datasheet- 1: $0.88000
- 4000: $0.35166
- 8000: $0.34068

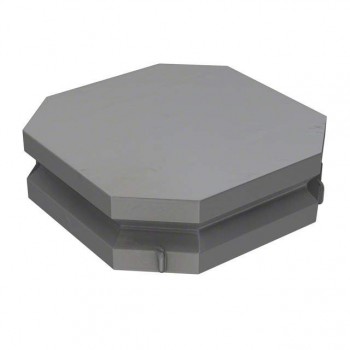

FIXED IND 4.7UH 1.1A 132 MOHM
