B82144F2393J000

TDK EPCOS
In Stock: 1,424

Can ship immediately

Pricing:
  • 1$0.84
  • 1,500$0.3553
  • 3,000$0.3344
  • 7,500$0.32395
  • 10,500$0.3135

Quote It

Technical Details

  • Series:LBC
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Active
  • Type:Wirewound
  • Material - Core:Ferrite
  • Inductance:39 µH
  • Tolerance:±5%
  • Current Rating (Amps):1.75 A
  • Current - Saturation (Isat):1.5A
  • Shielding:Unshielded
  • DC Resistance (DCR):250mOhm Max



  • Q @ Freq:40 @ 252kHz
  • Frequency - Self Resonant:8.5MHz
  • Ratings:-
  • Operating Temperature:-55°C ~ 125°C
  • Inductance Frequency - Test:100 kHz
  • Features:-
  • Mounting Type:Through Hole
  • Package / Case:Axial
  • Supplier Device Package:-
  • Size / Dimension:0.256" Dia x 0.362" L (6.50mm x 9.20mm)
  • Height - Seated (Max):-

Related Products


SDR7045-470K

FIXED IND 47UH 1A 230 MOHM SMD

SDR7045-470K Datasheet
  • 1: $0.84000
  • 1000: $ 0.30345
  • 3000: $0.28560

FDSD0412-H-2R2M=P3

FIXED IND 2.2UH 2.8A 84 MOHM SMD

FDSD0412-H-2R2M=P3 Datasheet
  • 1: $0.88000
  • 4000: $0.35166
  • 8000: $0.34068

VLS4012ET-100M-CA

FIXED IND 10UH 1.33A 228 MOHM

VLS4012ET-100M-CA Datasheet
  • 1: $0.84000
  • 1000: $ 0.35530
  • 3000: $0.33440

SRR7032-470M

FIXED IND 47UH 670MA 280MOHM SMD

SRR7032-470M Datasheet
  • 1: $0.84000
  • 1500: $ 0.27455
  • 3000: $0.25840

SRR4018-3R3Y

FIXED IND 3.3UH 1.95A 65MOHM SMD

SRR4018-3R3Y Datasheet
  • 1: $0.84000
  • 800: $ 0.29070
  • 1600: $0.27455

ASPI-0630HI-3R3M-T15

FIXED IND 3.3UH 6.8A 30 MOHM SMD

ASPI-0630HI-3R3M-T15 Datasheet
  • 1: $0.84000
  • 1500: $ 0.31450
  • 3000: $0.29600

SRR5018-470Y

FIXED IND 47UH 520MA 550MOHM SMD

SRR5018-470Y Datasheet
  • 1: $0.84000
  • 500: $ 0.33916
  • 1000: $0.27455

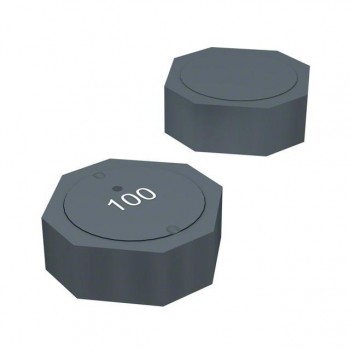

SRU5018-101Y

FIXED IND 100UH 320MA 620MOHM SM

SRU5018-101Y Datasheet
  • 1: $0.84000
  • 1000: $ 0.27455
  • 3000: $0.25840

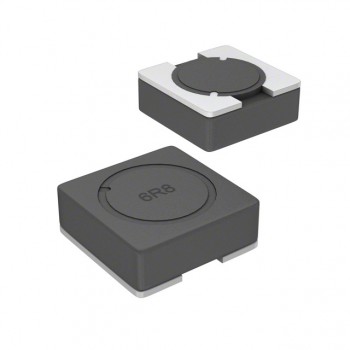

SRR4018-680Y

FIXED IND 68UH 500MA 860MOHM SMD

SRR4018-680Y Datasheet
  • 1: $0.84000
  • 800: $ 0.29070
  • 1600: $0.27455

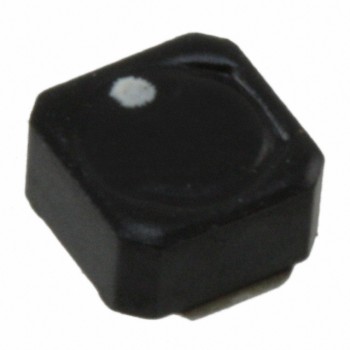

VLCF4024T-1R2N2R4-2
