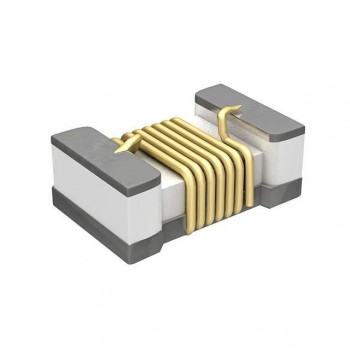

LQW03AW3N5C00D
TOKO / Murata
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 3.5NH 440MA 150 MOHM
- CategoryFixed Inductors
- Datasheet LQW03AW3N5C00D Datasheet
-
ECAD Model
- Share
In Stock: 11,912
Can ship immediately
Pricing:
- 1$0.86
- 10,000$0.3234
- 30,000$0.31262
Quote It
Technical Details
- Series:LQW03
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Wirewound
- Material - Core:-
- Inductance:3.5 nH
- Tolerance:±0.2nH
- Current Rating (Amps):440 mA
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):150mOhm Max
- Q @ Freq:43 @ 900MHz
- Frequency - Self Resonant:12GHz
- Ratings:-
- Operating Temperature:-55°C ~ 125°C
- Inductance Frequency - Test:100 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.021" L x 0.016" W (0.53mm x 0.40mm)
- Height - Seated (Max):0.018" (0.45mm)
