ELL-6SH181M
Panasonic
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 180UH 300MA 1.3 OHM
- CategoryFixed Inductors
- Datasheet ELL-6SH181M Datasheet
-
ECAD Model
- Share
In Stock: 1,394
Can ship immediately
Pricing:
- 1$0.88
- 1,000$0.88
- 3,000$0.82824
- 5,000$0.80236
- 10,000$0.77648
- 25,000$0.75059
Quote It
Technical Details
- Series:H
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Obsolete
- Type:Wirewound
- Material - Core:-
- Inductance:180 µH
- Tolerance:±20%
- Current Rating (Amps):300 mA
- Current - Saturation (Isat):-
- Shielding:Shielded
- DC Resistance (DCR):1.3Ohm
- Q @ Freq:-
- Frequency - Self Resonant:-
- Ratings:-
- Operating Temperature:-
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.252" L x 0.236" W (6.40mm x 6.00mm)
- Height - Seated (Max):0.130" (3.30mm)
Related Products

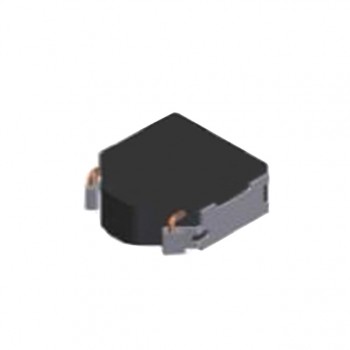

FIXED IND 1.5UH 5.3A 29 MOHM SMD
