IHLP2525CZERR68M8A
Vishay / Dale
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 680NH 16.5A 5.76 MOHM
- CategoryFixed Inductors
- Datasheet IHLP2525CZERR68M8A Datasheet
-
ECAD Model
- Share
In Stock: 2,093
Can ship immediately
Pricing:
- 1$1.41
- 2,000$1.16105
- 4,000$1.12359
- 6,000$1.08614
- 10,000$1.04869
Quote It
Technical Details
- Series:IHLP-2525CZ-8A
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Molded
- Material - Core:-
- Inductance:680 nH
- Tolerance:±20%
- Current Rating (Amps):16.5 A
- Current - Saturation (Isat):17A
- Shielding:Shielded
- DC Resistance (DCR):5.76mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:62.8MHz
- Ratings:AEC-Q200
- Operating Temperature:-55°C ~ 180°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.270" L x 0.255" W (6.86mm x 6.47mm)
- Height - Seated (Max):0.118" (3.00mm)
Related Products
FIXED IND 1UH 3.3A 60.8 MOHM SMD

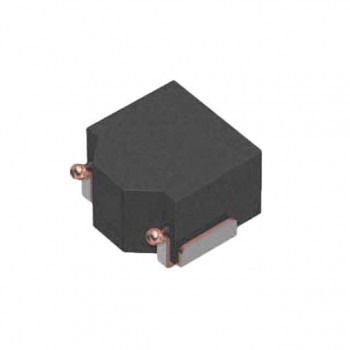

SPM3010T-1R0M-LR Datasheet- 1: $1.28000
